[Directx11][C++]11. 프레임워크 제작3(Pipeline)

6.파이프라인

이제 범용적으로 사용하는 것들을 Pipeline으로 묶어서 사용할 수 있도록 해보자

Render단계에 있는 것 중에 범용적으로  사용하는 부분만 따로 빼주고 이에 맞게 범용적으로 사용되는 포인터 변수를 담은 PipelineInfo 구조체도 만들어주자

범용적이지 않은 물체에 관련돼있는 변수들은 따로 설정할 수 있게 함수를 만들어주자



Pipeline.h

#pragma once
//포탄 갈아끼우기
//범용적으로 사용하는 것만 설정
struct PipelineInfo
{
	shared_ptr<InputLayout> inputLayout;
	shared_ptr<VertexShader> vertexShader;
	shared_ptr<PixelShader> pixelShader;
	shared_ptr<RasterizerState> rasterizerState;
	shared_ptr<BlendState> blendState;
	D3D11_PRIMITIVE_TOPOLOGY topology = D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST;
};

class Pipeline
{
public:
	Pipeline(ComPtr<ID3D11DeviceContext> deviceContext);
	~Pipeline();

	void UpdatePipeline(PipelineInfo info);

	void SetVertexBuffer(shared_ptr<VertexBuffer> buffer);
	void SetIndexBuffer(shared_ptr<IndexBuffer> buffer);

	template<typename T>
	void SetConstantBuffer(uint32 slot,uint32 scope,shared_ptr<ConstantBuffer<T>> buffer)
	{
		if(scope & SS_VertexShader)
			_deviceContext->VSSetConstantBuffers(slot, 1, buffer->GetComPtr().GetAddressOf());

		if (scope & SS_PixelShader)
			_deviceContext->PSSetConstantBuffers(slot, 1, buffer->GetComPtr().GetAddressOf());
	}

	void SetTexture(uint32 slot, uint32 scope, shared_ptr<Texture> texture);
	void SetSamplerState(uint32 slot, uint32 scope, shared_ptr<SamplerState> samplerState);

	void Draw(uint32 vertexcount, uint32 startVertexLocation);
	void DrawIndexed(uint32 indexCount, uint32 startIndexLocation, uint32 baseVertexLocation);
private:
	ComPtr<ID3D11DeviceContext> _deviceContext;
};



Pipeline.cpp

#include "pch.h"
#include "Pipeline.h"

Pipeline::Pipeline(ComPtr<ID3D11DeviceContext> deviceContext)
	:_deviceContext(deviceContext)
{
}

Pipeline::~Pipeline()
{
}

void Pipeline::UpdatePipeline(PipelineInfo info)
{
	//IA - 세팅부분
	_deviceContext->IASetInputLayout(info.inputLayout->GetComPtr().Get());
	_deviceContext->IASetPrimitiveTopology(info.topology);		//삼각형으로 만들어주기
	//VS
	if (info.vertexShader)
		_deviceContext->VSSetShader(info.vertexShader->GetComPtr().Get(), nullptr, 0);		//이걸로 일하게

	//RS
	if(info.rasterizerState)
		_deviceContext->RSSetState(info.rasterizerState->GetComPtr().Get());

	//PS
	if(info.pixelShader)
		_deviceContext->PSSetShader(info.pixelShader->GetComPtr().Get(), nullptr, 0);

	//OM
	if(info.blendState)
		_deviceContext->OMSetBlendState(info.blendState->GetComPtr().Get(), info.blendState->GetBlendFactor(), info.blendState->GetSampleMask());
}

void Pipeline::SetVertexBuffer(shared_ptr<VertexBuffer> buffer)
{
	uint32 stride = buffer->GetStride();
	uint32 offset = buffer->GetOffset();
	_deviceContext->IASetVertexBuffers(0, 1, buffer->GetComPtr().GetAddressOf(), &stride, &offset);
}

void Pipeline::SetIndexBuffer(shared_ptr<IndexBuffer> buffer)
{
	_deviceContext->IASetIndexBuffer(buffer->GetComPtr().Get(), DXGI_FORMAT_R32_UINT, 0);
}

void Pipeline::SetTexture(uint32 slot, uint32 scope, shared_ptr<Texture> texture)
{
	if (scope & SS_VertexShader)
		_deviceContext->VSSetShaderResources(0, 1, texture->GetComPtr().GetAddressOf());		//0번슬롯에 1개

	if (scope & SS_PixelShader)
		_deviceContext->PSSetShaderResources(0, 1, texture->GetComPtr().GetAddressOf());		//0번슬롯에 1개
}

void Pipeline::SetSamplerState(uint32 slot, uint32 scope, shared_ptr<SamplerState> samplerState)
{
	if (scope & SS_VertexShader)
		_deviceContext->VSSetSamplers(0, 1, samplerState->GetComPtr().GetAddressOf());

	if (scope & SS_PixelShader)
		_deviceContext->PSSetSamplers(0, 1, samplerState->GetComPtr().GetAddressOf());
}

void Pipeline::Draw(uint32 vertexcount, uint32 startVertexLocation)
{
	_deviceContext->Draw(vertexcount, startVertexLocation);
}

void Pipeline::DrawIndexed(uint32 indexCount, uint32 startIndexLocation, uint32 baseVertexLocation)
{
	_deviceContext->DrawIndexed(indexCount, startIndexLocation, baseVertexLocation);
}



그리고 마지막으로 메인코드를 정리해주자



Game.h

#pragma once


class Game
{
public:
	Game();
	~Game();
public:
	void Init(HWND hwnd);		//윈도우 핸들받아줌
	void Update();
	void Render();
private:
	HWND _hwnd;

	shared_ptr<Graphics> _graphics;
	shared_ptr<Pipeline> _pipeline;

private:
	//기하학적 도형 - cpu
	//vector<Vertex> _vertices;
	//vector<uint32> _indices;

	shared_ptr<Geometry<VertexTextureData>> _geometry;

	shared_ptr<VertexBuffer> _vertexBuffer;

	//인덱스버퍼 - 이거도 Geometry에 포함
	shared_ptr<IndexBuffer> _indexBuffer;
	shared_ptr<InputLayout> _inputLayout;

	//VS
	shared_ptr<VertexShader> _vertexShader;

	//RS
	shared_ptr<RasterizerState> _rasterizerState;

	//PS
	shared_ptr<PixelShader> _pixelShader;

	//SRV - 이미지를 어떻게 쓸것인가 - 텍스처
	shared_ptr<Texture> _texture1;

	shared_ptr<SamplerState> _samplerState;
	shared_ptr<BlendState> _blendState;
private:
	//SRT scale, rotate translate
	TransformData _transformData;
	shared_ptr<ConstantBuffer<TransformData>> _constantBuffer;

	Vec3 _localposition = { 0.f,0.f,0.f };
	Vec3 _localRotation = { 0.f,0.f,0.f };
	Vec3 _localScale = { 1.f,1.f,1.f };
};



Game.cpp

#include "pch.h"
#include "Game.h"

Game::Game()
{
}

Game::~Game()
{
}

void Game::Init(HWND hwnd)
{
	_hwnd = hwnd;

	//_graphics=make_shared<Graphics>(hwnd):
	_graphics = make_shared<Graphics>(hwnd);
	_vertexBuffer = make_shared<VertexBuffer>(_graphics->GetDevice());
	_indexBuffer = make_shared<IndexBuffer>(_graphics->GetDevice());
	_inputLayout = make_shared<InputLayout>(_graphics->GetDevice());
	_geometry = make_shared<Geometry<VertexTextureData>>();
	_vertexShader = make_shared<VertexShader>(_graphics->GetDevice());
	_pixelShader = make_shared<PixelShader>(_graphics->GetDevice());
	_constantBuffer = make_shared<ConstantBuffer<TransformData>>(_graphics->GetDevice(), _graphics->GetDeviceContext());
	_texture1 = make_shared<Texture>(_graphics->GetDevice());

	_rasterizerState = make_shared<RasterizerState>(_graphics->GetDevice());
	_samplerState = make_shared<SamplerState>(_graphics->GetDevice());
	_blendState = make_shared<BlendState>(_graphics->GetDevice());

	_pipeline = make_shared<Pipeline>(_graphics->GetDeviceContext());

	//삼각형 그리기 파트
	/// <summary>
	/// 기하학적인 도형만들기
	/// </summary>
	//정점정보
	GeometryHelper::CreateRectangle(_geometry);

	//정점버퍼
	_vertexBuffer->Create(_geometry->GetVertices());

	//IndexBuffer
	_indexBuffer->Create(_geometry->GetIndices());
	_vertexShader->Create(L"Default.hlsl", "VS", "vs_5_0");

	//인풋레이아웃
	/// <summary>
	/// 입력이 어떻게 이뤄져있는지
	/// </summary>
	_inputLayout->Create(VertexTextureData::descs, _vertexShader->GetBlob());

	_pixelShader->Create(L"Default.hlsl", "PS", "ps_5_0");

	_rasterizerState->Create();
	_samplerState->Create();
	_blendState->Create();
	/// <summary>
	/// 쉐이더 리소스 뷰
	/// </summary>
	_texture1->Create(L"cat.png");

	_constantBuffer->Create();
}

void Game::Update()
{
	//크기 회전 이동
	Matrix matScale = Matrix::CreateScale(_localScale/3);
	Matrix matRotation = Matrix::CreateRotationX(_localRotation.x);
	matRotation *= Matrix::CreateRotationY(_localRotation.y);
	matRotation *= Matrix::CreateRotationZ(_localRotation.z);
	Matrix matTranslation = Matrix::CreateTranslation(_localposition);

	Matrix matWorld = matScale * matRotation * matTranslation;	//SRT
	_transformData.matWorld = matWorld;

	_constantBuffer->CopyData(_transformData);
}

void Game::Render()
{
	_graphics->RenderBegin();			//초기화

	auto _deviceContext = _graphics->GetDeviceContext();
	// IA - VS - RS - PS -OM
	//TODO : 그리기
	{
		PipelineInfo info;
		info.inputLayout = _inputLayout;
		info.vertexShader = _vertexShader;
		info.pixelShader = _pixelShader;
		info.rasterizerState = _rasterizerState;
		info.blendState = _blendState;

		_pipeline->UpdatePipeline(info);

		auto _deviceContext = _graphics->GetDeviceContext();

		_pipeline->SetVertexBuffer(_vertexBuffer);
		_pipeline->SetIndexBuffer(_indexBuffer);
		_pipeline->SetConstantBuffer(0, SS_VertexShader, _constantBuffer);
		_pipeline->SetTexture(0, SS_PixelShader, _texture1);
		_pipeline->SetSamplerState(0, SS_PixelShader, _samplerState);
		_pipeline->DrawIndexed(_geometry->GetIndexCount(), 0, 0);
	}

	_graphics->RenderEnd();			//제출
}

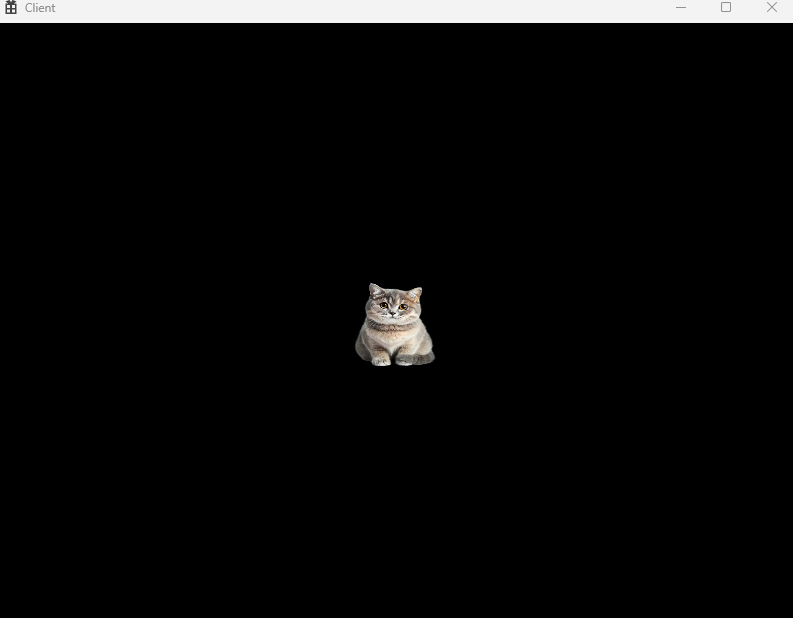

정상 작동하는 것을 볼 수 있다.
