[Directx11][C++][3D]19. 인스턴싱(ModelAnimator)

오늘은 애니메이션을 가진 모델을 인스턴싱할 수 있도록 코드를 수정해주자. 우선 메인코드에서 모델과 모델애니메이션을 부르는 코드를 추가해주자.

AnimInstancingDemo.cpp

void AnimInstancingDemo::Init()
{
	RESOURCES->Init();
	_shader = make_shared<Shader>(L"22. AnimInstancingDemo.fx");

	// Camera
	_camera = make_shared<GameObject>();
	_camera->GetOrAddTransform()->SetPosition(Vec3{ 0.f, 0.f, -5.f });
	_camera->AddComponent(make_shared<Camera>());
	_camera->AddComponent(make_shared<CameraScript>());

	shared_ptr<class Model> m1 = make_shared<Model>();
	m1->ReadModel(L"Kachujin/Kachujin");
	m1->ReadMaterial(L"Kachujin/Kachujin");
	m1->ReadAnimation(L"Kachujin/Idle");
	m1->ReadAnimation(L"Kachujin/Run");
	m1->ReadAnimation(L"Kachujin/Slash");

	for (int32 i = 0; i < 500; i++)
	{
		auto obj = make_shared<GameObject>();
		obj->GetOrAddTransform()->SetPosition(Vec3(rand() % 100, 0, rand() % 100));
		obj->GetOrAddTransform()->SetScale(Vec3(0.01f));
		obj->AddComponent(make_shared<ModelRenderer>(_shader));
		{
			obj->GetModelRenderer()->SetModel(m1);
		}
		_objs.push_back(obj);
	}

	RENDER->Init(_shader);
}

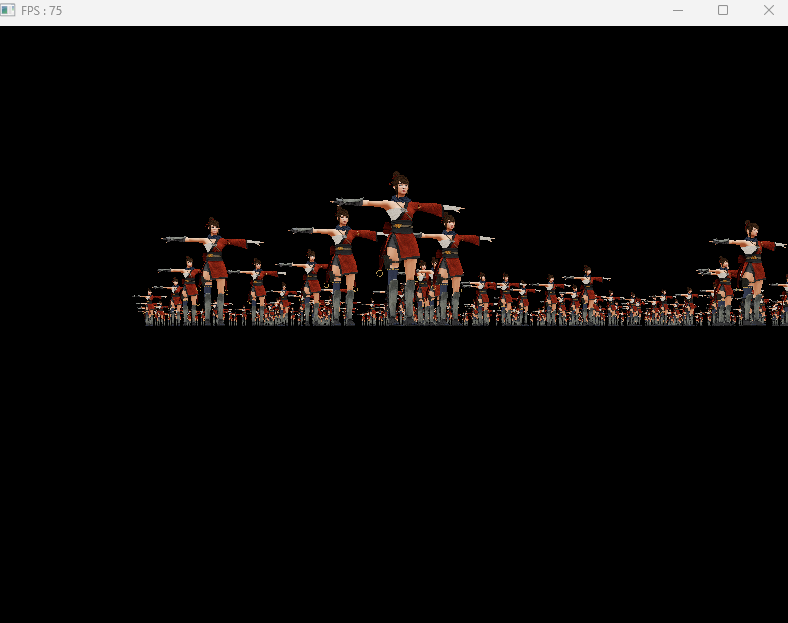

이렇게 해주면 애니메이션이 적용되지 않은 기본자세의 모델이 출력되고 있는 모습을 볼 수 있다.





이제 코드를 본격적으로 수정해보자. 쉐이더코드를 먼저 수정해주자. 우리가 최종적으로 애니메이션 작업을 했던

TweenDemo.fx 코드를 참고하여 글로벌에서 루트, 루트에서 다시 다른자세로 가는 행렬을 구해줬던 부분을 넣어주는게

핵심이다.

AnimInstancingDemo.fx

#include "00. Global.fx"
#include "00. Light.fx"

#define MAX_MODEL_TRANSFORMS 250
#define MAX_MODEL_KEYFRAMES 500


struct KeyframeDesc
{
    int animIndex;
    uint currFrame;
    uint nextFrame;
    float ratio; //프레임 블렌딩용
    float sumTime;
    float speed;
    float2 padding;
};

struct TweenFrameDesc
{
    float tweenDuration; //트랜지션 지속시간
    float tweenRatio;
    float tweenSumTime;
    float padding;
    KeyframeDesc curr;
    KeyframeDesc next;
};

cbuffer TweenBuffer
{
    TweenFrameDesc TweenFrames;
};

cbuffer BoneBuffer
{
    matrix BoneTransform[MAX_MODEL_TRANSFORMS];
};

uint BoneIndex;
Texture2DArray TransformMap;

struct VS_IN
{
    float4 position : POSITION;
    float2 uv : TEXCOORD;
    float3 normal : NORMAL;
    float3 tangent : TANGENT;
    float4 blendIndices : BLEND_INDICES;
    float4 blendWeights : BLEND_WEIGHTS;
	// INSTANCING
    uint instanceID : SV_INSTANCEID;
    matrix world : INST;
};

struct VS_OUT
{
    float4 position : SV_POSITION;
    float3 worldPosition : POSITION1;
    float2 uv : TEXCOORD;
    float3 normal : NORMAL;
};

matrix GetAnimationMatrix(VS_IN input)
{
    float indices[4] = { input.blendIndices.x, input.blendIndices.y, input.blendIndices.z, input.blendIndices.w };
	float weights[4] = { input.blendWeights.x, input.blendWeights.y, input.blendWeights.z, input.blendWeights.w };

    int animIndex[2];
    int currFrame[2];
    int nextFrame[2];
    float ratio[2];

    animIndex[0] = TweenFrames.curr.animIndex;
    currFrame[0] = TweenFrames.curr.currFrame;
    nextFrame[0] = TweenFrames.curr.nextFrame;
    ratio[0] = TweenFrames.curr.ratio;

    animIndex[1] = TweenFrames.next.animIndex;
    currFrame[1] = TweenFrames.next.currFrame;
    nextFrame[1] = TweenFrames.next.nextFrame;
    ratio[1] = TweenFrames.next.ratio;

    float4 c0, c1, c2, c3;
    float4 n0, n1, n2, n3;

    matrix curr = 0;
    matrix next = 0;
    matrix transform = 0;

    //각 뼈의 가중치에 따른 행렬 누적
    for (int i = 0; i < 4; i++)
    {
        //처음 애니메이션
        c0 = TransformMap.Load(int4(indices[i] * 4 + 0, currFrame[0], animIndex[0], 0));
        c1 = TransformMap.Load(int4(indices[i] * 4 + 1, currFrame[0], animIndex[0], 0));
        c2 = TransformMap.Load(int4(indices[i] * 4 + 2, currFrame[0], animIndex[0], 0));
        c3 = TransformMap.Load(int4(indices[i] * 4 + 3, currFrame[0], animIndex[0], 0));
        curr = matrix(c0, c1, c2, c3);

        n0 = TransformMap.Load(int4(indices[i] * 4 + 0, nextFrame[0], animIndex[0], 0));
        n1 = TransformMap.Load(int4(indices[i] * 4 + 1, nextFrame[0], animIndex[0], 0));
        n2 = TransformMap.Load(int4(indices[i] * 4 + 2, nextFrame[0], animIndex[0], 0));
        n3 = TransformMap.Load(int4(indices[i] * 4 + 3, nextFrame[0], animIndex[0], 0));
        next = matrix(n0, n1, n2, n3);

        matrix result = lerp(curr, next, ratio[0]);

		// 다음 애니메이션
        if (animIndex[1] >= 0)
        {
            c0 = TransformMap.Load(int4(indices[i] * 4 + 0, currFrame[1], animIndex[1], 0));
            c1 = TransformMap.Load(int4(indices[i] * 4 + 1, currFrame[1], animIndex[1], 0));
            c2 = TransformMap.Load(int4(indices[i] * 4 + 2, currFrame[1], animIndex[1], 0));
            c3 = TransformMap.Load(int4(indices[i] * 4 + 3, currFrame[1], animIndex[1], 0));
            curr = matrix(c0, c1, c2, c3);

            n0 = TransformMap.Load(int4(indices[i] * 4 + 0, nextFrame[1], animIndex[1], 0));
            n1 = TransformMap.Load(int4(indices[i] * 4 + 1, nextFrame[1], animIndex[1], 0));
            n2 = TransformMap.Load(int4(indices[i] * 4 + 2, nextFrame[1], animIndex[1], 0));
            n3 = TransformMap.Load(int4(indices[i] * 4 + 3, nextFrame[1], animIndex[1], 0));
            next = matrix(n0, n1, n2, n3);

            matrix nextResult = lerp(curr, next, ratio[1]);
            result = lerp(result, nextResult, TweenFrames.tweenRatio);
        }

        transform += mul(weights[i], result);
    }

    return transform;
}

VS_OUT VS(VS_IN input)
{
    VS_OUT output;

    //output.position = mul(input.position, BoneTransform[BoneIndex]);    //루트기준좌표

    matrix m = GetAnimationMatrix(input);
    output.position = mul(input.position, m);
    //물체마다 World 가져오기
    output.position = mul(output.position, input.world); // W
    output.worldPosition = output.position;
    output.position = mul(output.position, VP);
    output.uv = input.uv;
    output.normal = input.normal;

    return output;
}


float4 PS(VS_OUT input) : SV_TARGET
{
	//float4 color = ComputeLight(input.normal, input.uv, input.worldPosition);
    float4 color = DiffuseMap.Sample(LinearSampler, input.uv);
    return color;
}

technique11 T0
{
	PASS_VP(P0, VS, PS)
};



이제 본격적으로 정보를 전달해주는 부분인 ModelAnimator를 수정해주자. 우선 생각해봐야하는 것은 인스턴싱을 한다고 했을 때 어느부분이 동일하고 어느부분이 다를까를 생각해봐야한다. 이때 우리가 애니메이션 별로 매프레임마다 뼈의

위치가 어디있는지 모아서 SRV를 통해 텍스처맵을 전달해주고 있는데 이 부분을 어떻게 해줄지 생각해보자.

일단 텍스처맵은 애니메이션이 급격하게 바뀌는 것이 아니라서 공용으로 사용해주어도 좋을 것 같다.



TweenDesc은 현재 애니메이션 정보와 다음 애니메이션 정보를 가지고 있는데 이것을 공용으로 사용해주면 같은 오브젝트 정보를 가지고 있다면 무조건 같은 애니메이션이 실행되기 때문에 같은 오브젝트라도 각기 다르게 움직일 수 있어야 하기 때문에 수정해줘야한다.

일단 이러한 정보를 자기혼자 렌더링하는 함수에서 인스턴싱을 할 수 있도록 Animator 클래스 코드를 수정해주자

ModelAnimator.h

#pragma once
#include "Component.h"

class Model;

struct AnimTransform
{
	using TransformArrayType = array<Matrix, MAX_MODEL_TRANSFORMS>;

	//2차배열
	array<TransformArrayType, MAX_MODEL_KEYFRAMES> transforms;

};

class ModelAnimator : public Component
{
	using Super = Component;

public:
	ModelAnimator(shared_ptr<Shader> shader);
	~ModelAnimator();


	void SetModel(shared_ptr<Model> model);
	void SetPass(uint8 pass) { _pass = pass; }

	virtual void Update() override;
	void UpdateTweenData();
	void RenderInstancing(shared_ptr<class InstancingBuffer>& buffer);
	InstanceID GetInstanceID();

private:
	void CreateTexture();
	void CreateAnimationTransform(uint32 index);

private:
	vector<AnimTransform> _animTransforms;
	ComPtr<ID3D11Texture2D> _texture;
	//Texture
	ComPtr<ID3D11ShaderResourceView> _srv;

private:
	TweenDesc _tweenDesc;

private:
	shared_ptr<Shader>	_shader;
	uint8				_pass = 0;		//통로
	shared_ptr<Model>	_model;

};

ModelAnimator.cpp

#include "pch.h"
#include "ModelAnimator.h"
#include "Material.h"
#include "ModelMesh.h"
#include "Model.h"
#include "ModelAnimation.h"

ModelAnimator::ModelAnimator(shared_ptr<Shader> shader)
	: Super(ComponentType::Animator), _shader(shader)
{
	// TEST
	_tweenDesc.next.animIndex = rand() % 3;
	_tweenDesc.tweenSumTime += rand() % 100;
}

ModelAnimator::~ModelAnimator()
{
}

void ModelAnimator::Update()
{

}

void ModelAnimator::UpdateTweenData()
{
	TweenDesc& desc = _tweenDesc;

	desc.curr.sumTime += DT;
	//현재 애니메이션
	{
		shared_ptr<ModelAnimation> currentAnim = _model->GetAnimationByIndex(desc.curr.animIndex);
		if (currentAnim)
		{
			float timePerFrame = 1 / (currentAnim->frameRate * desc.curr.speed);
			if (desc.curr.sumTime >= timePerFrame)
			{
				desc.curr.sumTime = 0;
				desc.curr.currFrame = (desc.curr.currFrame + 1) % currentAnim->frameCount;
				desc.curr.nextFrame = (desc.curr.currFrame + 1) % currentAnim->frameCount;
			}

			desc.curr.ratio = (desc.curr.sumTime / timePerFrame);
		}
	}

	// 다음 애니메이션이 예약 되어 있다면
	if (desc.next.animIndex >= 0)
	{
		desc.tweenSumTime += DT;
		desc.tweenRatio = desc.tweenSumTime / desc.tweenDuration;

		if (desc.tweenRatio >= 1.f)
		{
			// 애니메이션 교체 성공
			desc.curr = desc.next;
			desc.ClearNextAnim();
		}
		else
		{
			// 교체중
			shared_ptr<ModelAnimation> nextAnim = _model->GetAnimationByIndex(desc.next.animIndex);
			desc.next.sumTime += DT;

			float timePerFrame = 1.f / (nextAnim->frameRate * desc.next.speed);

			if (desc.next.ratio >= 1.f)
			{
				desc.next.sumTime = 0;

				desc.next.currFrame = (desc.next.currFrame + 1) % nextAnim->frameCount;
				desc.next.nextFrame = (desc.next.currFrame + 1) % nextAnim->frameCount;
			}

			desc.next.ratio = desc.next.sumTime / timePerFrame;
		}
	}
}

void ModelAnimator::SetModel(shared_ptr<Model> model)
{
	_model = model;

	const auto& materials = _model->GetMaterials();
	for (auto& material : materials)
	{
		material->SetShader(_shader);
	}
}

void ModelAnimator::RenderInstancing(shared_ptr<class InstancingBuffer>& buffer)
{
	if (_model == nullptr)
		return;

	//TODO
	if (_texture == nullptr)
		CreateTexture();

	//SRV를 전달
	_shader->GetSRV("TransformMap")->SetResource(_srv.Get());

	//Bones -> shader
	BoneDesc boneDesc;

	const uint32 boneCount = _model->GetBoneCount();

	for (uint32 i = 0; i < boneCount; i++)
	{
		shared_ptr<ModelBone> bone = _model->GetBoneByIndex(i);
		boneDesc.transforms[i] = bone->transform;
	}
	RENDER->PushBoneData(boneDesc);

	const auto& meshes = _model->GetMeshes();
	for (auto& mesh : meshes)
	{
		if (mesh->material)
			mesh->material->Update();

		//BoneIndex
		_shader->GetScalar("BoneIndex")->SetInt(mesh->boneIndex);

		mesh->vertexBuffer->PushData();
		mesh->indexBuffer->PushData();

		buffer->PushData();
		_shader->DrawIndexedInstanced(0, _pass, mesh->indexBuffer->GetCount(), buffer->GetCount());
	}
}

InstanceID ModelAnimator::GetInstanceID()
{
	return make_pair((uint64)_model.get(), (uint64)_shader.get());
}

void ModelAnimator::CreateTexture()
{
	if (_model->GetAnimationCount() == 0)
		return;

	_animTransforms.resize(_model->GetAnimationCount());
	for (uint32 i = 0; i < _model->GetAnimationCount(); i++)
		CreateAnimationTransform(i);

	//CreateTexture
	{
		D3D11_TEXTURE2D_DESC desc;
		ZeroMemory(&desc, sizeof(D3D11_TEXTURE2D_DESC));
		desc.Width = MAX_MODEL_TRANSFORMS * 4;		//4칸으로 쪼개기
		desc.Height = MAX_MODEL_KEYFRAMES;
		desc.ArraySize = _model->GetAnimationCount();		//텍스처배열
		desc.Format = DXGI_FORMAT_R32G32B32A32_FLOAT; // 16바이트
		desc.Usage = D3D11_USAGE_IMMUTABLE;
		desc.BindFlags = D3D11_BIND_SHADER_RESOURCE;
		desc.MipLevels = 1;
		desc.SampleDesc.Count = 1;

		//한층
		const uint32 dataSize = MAX_MODEL_TRANSFORMS * sizeof(Matrix);
		//층을 프레임만큼
		const uint32 pageSize = dataSize * MAX_MODEL_KEYFRAMES;
		//애니메이션 개수만큼
		void* mallocPtr = ::malloc(pageSize * _model->GetAnimationCount());

		// 파편화된 데이터를 조립한다.
		for (uint32 c = 0; c < _model->GetAnimationCount(); c++)
		{
			uint32 startOffset = c * pageSize;

			//포인터 연산 - ~칸씩 앞으로 가기 때문에
			BYTE* pageStartPtr = reinterpret_cast<BYTE*>(mallocPtr) + startOffset;


			for (uint32 f = 0; f < MAX_MODEL_KEYFRAMES; f++)
			{
				void* ptr = pageStartPtr + dataSize * f;
				::memcpy(ptr, _animTransforms[c].transforms[f].data(), dataSize);
			}
		}

		// 리소스 만들기
		vector<D3D11_SUBRESOURCE_DATA> subResources(_model->GetAnimationCount());

		for (uint32 c = 0; c < _model->GetAnimationCount(); c++)
		{
			void* ptr = (BYTE*)mallocPtr + c * pageSize;
			subResources[c].pSysMem = ptr;
			subResources[c].SysMemPitch = dataSize;
			subResources[c].SysMemSlicePitch = pageSize;
		}

		//텍스처 배열이 전달된다.
		HRESULT hr = DEVICE->CreateTexture2D(&desc, subResources.data(), _texture.GetAddressOf());
		CHECK(hr);

		::free(mallocPtr);

	}

	// Create SRV
	{
		D3D11_SHADER_RESOURCE_VIEW_DESC desc;
		ZeroMemory(&desc, sizeof(desc));
		desc.Format = DXGI_FORMAT_R32G32B32A32_FLOAT;
		desc.ViewDimension = D3D11_SRV_DIMENSION_TEXTURE2DARRAY;
		desc.Texture2DArray.MipLevels = 1;
		desc.Texture2DArray.ArraySize = _model->GetAnimationCount();

		HRESULT hr = DEVICE->CreateShaderResourceView(_texture.Get(), &desc, _srv.GetAddressOf());
		CHECK(hr);
	}
}

void ModelAnimator::CreateAnimationTransform(uint32 index)
{
	//캐싱용
	vector<Matrix> tempAnimBoneTransforms(MAX_MODEL_TRANSFORMS, Matrix::Identity);

	shared_ptr<ModelAnimation> animation = _model->GetAnimationByIndex(index);

	//프레임순회
	for (uint32 f = 0; f < animation->frameCount; f++)
	{
		//본 순회
		for (uint32 b = 0; b < _model->GetBoneCount(); b++)
		{
			shared_ptr<ModelBone> bone = _model->GetBoneByIndex(b);

			Matrix matAnimation;

			shared_ptr<ModelKeyframe> frame = animation->GetKeyframe(bone->name);
			if (frame != nullptr)
			{
				ModelKeyframeData& data = frame->transforms[f];

				Matrix S, R, T;
				S = Matrix::CreateScale(data.scale.x, data.scale.y, data.scale.z);
				R = Matrix::CreateFromQuaternion(data.rotation);
				T = Matrix::CreateTranslation(data.translation.x, data.translation.y, data.translation.z);

				matAnimation = S * R * T;
			}
			else
			{
				matAnimation = Matrix::Identity;
			}

			// 처음 T 포즈기준
			Matrix toRootMatrix = bone->transform;
			Matrix invGlobal = toRootMatrix.Invert();

			int32 parentIndex = bone->parentIndex;

			Matrix matParent = Matrix::Identity;
			if(parentIndex>=0)
				matParent = tempAnimBoneTransforms[parentIndex];

			tempAnimBoneTransforms[b] = matAnimation * matParent;

			//기본-> 다른자세
			_animTransforms[index].transforms[f][b] = invGlobal * tempAnimBoneTransforms[b];
		}
	}
}

이렇게 해준다음 TweenData를 각각의 오브젝트에 따라 설정해주기 위해 배열로 만들어준다. 이때 쉐이더 코드에서 INSTANCE ID를 통해 몇번째 인스턴싱인지 알 수 있기 때문에 이를 통해 Tweendata에서 몇번째인지도 알 수 있다.

AnimInstancingDemo.fx

#include "00. Global.fx"
#include "00. Light.fx"

#define MAX_MODEL_TRANSFORMS 250
#define MAX_MODEL_KEYFRAMES 500
#define MAX_MODEL_INSTANCE 500


struct KeyframeDesc
{
    int animIndex;
    uint currFrame;
    uint nextFrame;
    float ratio; //프레임 블렌딩용
    float sumTime;
    float speed;
    float2 padding;
};

struct TweenFrameDesc
{
    float tweenDuration; //트랜지션 지속시간
    float tweenRatio;
    float tweenSumTime;
    float padding;
    KeyframeDesc curr;
    KeyframeDesc next;
};

cbuffer TweenBuffer
{
    TweenFrameDesc TweenFrames[MAX_MODEL_INSTANCE];
};

cbuffer BoneBuffer
{
    matrix BoneTransform[MAX_MODEL_TRANSFORMS];
};

uint BoneIndex;
Texture2DArray TransformMap;

struct VS_IN
{
    float4 position : POSITION;
    float2 uv : TEXCOORD;
    float3 normal : NORMAL;
    float3 tangent : TANGENT;
    float4 blendIndices : BLEND_INDICES;
    float4 blendWeights : BLEND_WEIGHTS;
	// INSTANCING
    uint instanceID : SV_INSTANCEID;
    matrix world : INST;
};

struct VS_OUT
{
    float4 position : SV_POSITION;
    float3 worldPosition : POSITION1;
    float2 uv : TEXCOORD;
    float3 normal : NORMAL;
};

matrix GetAnimationMatrix(VS_IN input)
{
    float indices[4] = { input.blendIndices.x, input.blendIndices.y, input.blendIndices.z, input.blendIndices.w };
    float weights[4] = { input.blendWeights.x, input.blendWeights.y, input.blendWeights.z, input.blendWeights.w };

    int animIndex[2];
    int currFrame[2];
    int nextFrame[2];
    float ratio[2];

    animIndex[0] = TweenFrames[input.instanceID].curr.animIndex;
    currFrame[0] = TweenFrames[input.instanceID].curr.currFrame;
    nextFrame[0] = TweenFrames[input.instanceID].curr.nextFrame;
    ratio[0] = TweenFrames[input.instanceID].curr.ratio;

    animIndex[1] = TweenFrames[input.instanceID].next.animIndex;
    currFrame[1] = TweenFrames[input.instanceID].next.currFrame;
    nextFrame[1] = TweenFrames[input.instanceID].next.nextFrame;
    ratio[1] = TweenFrames[input.instanceID].next.ratio;

    float4 c0, c1, c2, c3;
    float4 n0, n1, n2, n3;

    matrix curr = 0;
    matrix next = 0;
    matrix transform = 0;

    //각 뼈의 가중치에 따른 행렬 누적
    for (int i = 0; i < 4; i++)
    {
        //처음 애니메이션
        c0 = TransformMap.Load(int4(indices[i] * 4 + 0, currFrame[0], animIndex[0], 0));
        c1 = TransformMap.Load(int4(indices[i] * 4 + 1, currFrame[0], animIndex[0], 0));
        c2 = TransformMap.Load(int4(indices[i] * 4 + 2, currFrame[0], animIndex[0], 0));
        c3 = TransformMap.Load(int4(indices[i] * 4 + 3, currFrame[0], animIndex[0], 0));
        curr = matrix(c0, c1, c2, c3);

        n0 = TransformMap.Load(int4(indices[i] * 4 + 0, nextFrame[0], animIndex[0], 0));
        n1 = TransformMap.Load(int4(indices[i] * 4 + 1, nextFrame[0], animIndex[0], 0));
        n2 = TransformMap.Load(int4(indices[i] * 4 + 2, nextFrame[0], animIndex[0], 0));
        n3 = TransformMap.Load(int4(indices[i] * 4 + 3, nextFrame[0], animIndex[0], 0));
        next = matrix(n0, n1, n2, n3);

        matrix result = lerp(curr, next, ratio[0]);

		// 다음 애니메이션
        if (animIndex[1] >= 0)
        {
            c0 = TransformMap.Load(int4(indices[i] * 4 + 0, currFrame[1], animIndex[1], 0));
            c1 = TransformMap.Load(int4(indices[i] * 4 + 1, currFrame[1], animIndex[1], 0));
            c2 = TransformMap.Load(int4(indices[i] * 4 + 2, currFrame[1], animIndex[1], 0));
            c3 = TransformMap.Load(int4(indices[i] * 4 + 3, currFrame[1], animIndex[1], 0));
            curr = matrix(c0, c1, c2, c3);

            n0 = TransformMap.Load(int4(indices[i] * 4 + 0, nextFrame[1], animIndex[1], 0));
            n1 = TransformMap.Load(int4(indices[i] * 4 + 1, nextFrame[1], animIndex[1], 0));
            n2 = TransformMap.Load(int4(indices[i] * 4 + 2, nextFrame[1], animIndex[1], 0));
            n3 = TransformMap.Load(int4(indices[i] * 4 + 3, nextFrame[1], animIndex[1], 0));
            next = matrix(n0, n1, n2, n3);

            matrix nextResult = lerp(curr, next, ratio[1]);
            result = lerp(result, nextResult, TweenFrames[input.instanceID].tweenRatio);
        }

        transform += mul(weights[i], result);
    }

    return transform;
}

VS_OUT VS(VS_IN input)
{
    VS_OUT output;

    //output.position = mul(input.position, BoneTransform[BoneIndex]);    //루트기준좌표

    matrix m = GetAnimationMatrix(input);
    output.position = mul(input.position, m);
    //물체마다 World 가져오기
    output.position = mul(output.position, input.world); // W
    output.worldPosition = output.position;
    output.position = mul(output.position, VP);
    output.uv = input.uv;
    output.normal = input.normal;

    return output;
}


float4 PS(VS_OUT input) : SV_TARGET
{
	//float4 color = ComputeLight(input.normal, input.uv, input.worldPosition);
    float4 color = DiffuseMap.Sample(LinearSampler, input.uv);
    return color;
}

technique11 T0
{
	PASS_VP(P0, VS, PS)
};



이 쉐이더에 맞게 정보를 넘겨주는 버퍼를 만들어주자. 이것 또한 배열로 만들어주면된다.

RenderManager.h

struct InstancedTweenDesc
{
	TweenDesc tweens[MAX_MODEL_INSTANCE];
};

class RenderManager
{
	DECLARE_SINGLE(RenderManager);

public:
	void PushTweenData(const InstancedTweenDesc& desc);

private:
	InstancedTweenDesc _tweenDesc;
	shared_ptr<ConstantBuffer<InstancedTweenDesc>> _tweenBuffer;
	ComPtr<ID3DX11EffectConstantBuffer> _tweenEffectBuffer;

};

RenderManager.cpp

#include "pch.h"
#include "RenderManager.h"
#include "Camera.h"

void RenderManager::Init(shared_ptr<Shader> shader)
{
	_tweenBuffer = make_shared<ConstantBuffer<InstancedTweenDesc>>();
	_tweenBuffer->Create();
	_tweenEffectBuffer = _shader->GetConstantBuffer("TweenBuffer");
}

void RenderManager::PushTweenData(const InstancedTweenDesc& desc)
{
	_tweenDesc = desc;
	_tweenBuffer->CopyData(_tweenDesc);
	_tweenEffectBuffer->SetConstantBuffer(_tweenBuffer->GetComPtr().Get());
}



이렇게 버퍼를 넘겨주는 부분을 만들었지만 인스턴싱버퍼에는 각 오브젝트의 월드좌표만 가지고 있기 때문에 이 ModelAnimator의 TweenDesc 정보를 꺼내서 만들어준 버퍼를 통해 넘겨줘야한다.

일단 Animator에서 TweenDesc를 가져오는 함수를 만들어주자.

ModelAnimator.h

#pragma once
#include "Component.h"

class ModelAnimator : public Component
{
public:
	TweenDesc& GetTweenDesc() { return _tweenDesc; }

};



그렇게 해준다음 매니저에서 정보를 업데이트 해준 다음 각 오브젝트의 TweenDesc를 가져온다음에 버퍼를 통해 밀어넣어주면된다.

InstancingManager.cpp

void InstancingManager::RenderAnimRenderer(vector<shared_ptr<GameObject>>& gameObjects)
{
	map<InstanceID, vector<shared_ptr<GameObject>>> cache;

	for (shared_ptr<GameObject>& gameObject : gameObjects)
	{
		if (gameObject->GetModelAnimator() == nullptr)
			continue;

		const InstanceID instanceId = gameObject->GetModelAnimator()->GetInstanceID();
		cache[instanceId].push_back(gameObject);
	}

	for (auto& pair : cache)
	{
		shared_ptr<InstancedTweenDesc> tweenDesc = make_shared<InstancedTweenDesc>();

		const vector<shared_ptr<GameObject>>& vec = pair.second;

		//if (vec.size() == 1)
		//{
		//	vec[0]->GetModelAnimator()->RenderSingle();
		//}
		//else
		{
			const InstanceID instanceId = pair.first;

			for (int32 i = 0; i < vec.size(); i++)
			{
				const shared_ptr<GameObject>& gameObject = vec[i];
				InstancingData data;
				data.world = gameObject->GetTransform()->GetWorldMatrix();

				AddData(instanceId, data);

				// INSTANCING
				gameObject->GetModelAnimator()->UpdateTweenData();
				tweenDesc->tweens[i] = gameObject->GetModelAnimator()->GetTweenDesc();
			}
			//트윈데이터 넣어주기
			RENDER->PushTweenData(*tweenDesc.get());

			shared_ptr<InstancingBuffer>& buffer = _buffers[instanceId];
			vec[0]->GetModelAnimator()->RenderInstancing(buffer);
		}
	}
}

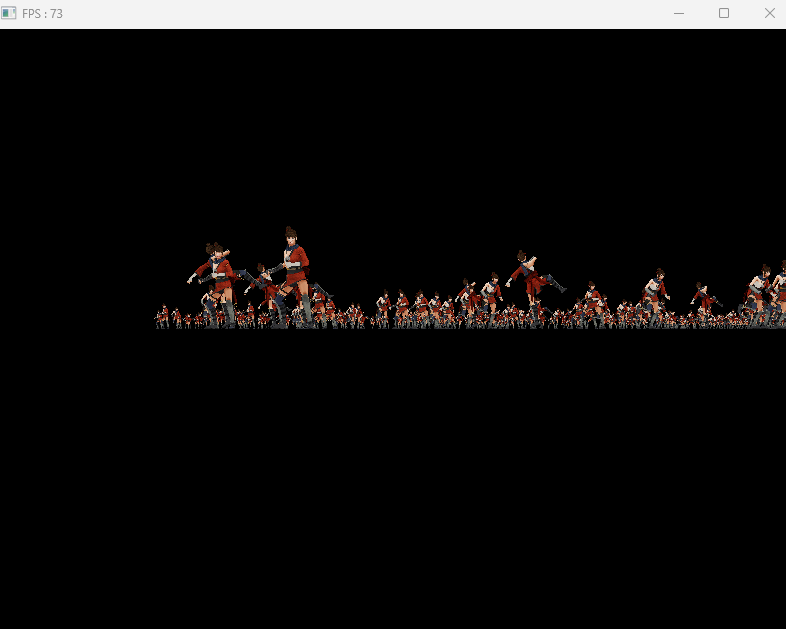

이렇게 해주면 안정적인 프레임으로 각각의 오브젝트들에서 애니메이션이 동작하는것을 볼 수 있다.
